ParaZapper™ MY Specifications ( preliminary )

The ParaZapper™ MY ( All in One Zapper ) is a microprocessor based multi-frequency zapper designed with improved results in consideration. It provides 10.5 to 10.8 volts output and long battery life using a standard 9 volt battery. It has a timer with a beeper to let you know when your cycle is done. One frequency alone does not provide the best overall coverage for multiple types of micro-organisms. Two frequencies can double the chance of hitting a particular organisms resonance, but even this does not provide the best coverage. For that reason, we have selected 14 Clark Frequencies in the 1 kHz to 2.5 kHz range, 6 frequencies in the Clark 30 kHz range, The 15 Hz Don Croft Terminator frequency, 12 of the most important Rife frequencies, and the Ultimate Zapper mode to provide the greatest flexibility and the best available coverage in an economical unit. The frequencies are as follows.

MODE	Frequencies	Duration
Mode 1	Clark 1.0 - 2.5 kHz range Freq 1 1000 +/- 10 Hz Freq 2 2350 +/- 10 Hz Freq 3 1250 +/- 10 Hz Freq 4 2300 +/- 10 Hz Freq 5 1500 +/- 10 Hz Freq 6 2100 +/- 10 Hz Freq 7 1600 +/- 10 Hz Freq 8 2175 +/- 10 Hz Freq 9 2050 +/- 10 Hz Freq 10 2150 +/- 10 Hz Freq 11 1600 +/- 10 Hz Freq 12 2075 +/- 10 Hz Freq 13 2458 +/- 10 Hz Freq 14 2059 +/- 10 Hz Stop and off 5 seconds, 3 - 1 second pulses and repeat Mode 1 will blink 1 Flash every 2 seconds Note that due to the accuracy of the microprocessor generated signal, most units are within 1 Hz of the specified frequency. The total cycle time is 14 minutes.	1.0 min 1.0 min 1.0 min 1.0 min 1.0 min 1.0 min 1.0 min 1.0 min 1.0 min 1.0 min 1.0 min 1.0 min 1.0 min 1.0 min
Mode 2	Clark 30 kHz range Freq 1 27660 +/- 150 Hz Freq 2 29290 +/- 150 Hz Freq 3 31125 +/- 150 Hz Freq 4 28460 +/- 150 Hz Freq 5 30180 +/- 150 Hz Freq 6 32060 +/- 150 Hz Stop and off 5 seconds, 3 - 1 second pulses and repeat Mode 2 will blink 2 Flashes every 2 seconds Note that due to the accuracy of the microprocessor generated signal, most units are within 40 Hz of the specified frequency. The total cycle time is 9 minutes.	1.5 min 1.5 min 1.5 min 1.5 min 1.5 min 1.5 min
Mode 3	Croft Terminator range Freq 15 Hz +/- 0.5 Hz Stop and off 5 seconds, 3 - 1 second pulses and repeat Mode 3 will blink the Mode/Battery LED 3 Flashes every 2 seconds Note: Use for 7 minutes on, 15-20 minutes off, repeat 3 times. Repeating 4 times will improve effectiveness. Important Note: This is a very low frequency that will feel much stronger than the others if the electrodes come into contact with the body. The signal is actually not any stronger, it just feels stronger due to normal nerve physiology. However, due to this sensitivity, it is strongly advised to keep this frequency away from accidental contact with either the chest area near the heart, or the head area, including the jaws and neck and especially keep it away from the eyes.	7.0 min
Mode 4	Rife Sequence Freq 1 727 +/- 5 Hz Freq 2 880 +/- 7 Hz Freq 3 787 +/- 5 Hz Freq 4 832 +/- 5 Hz Freq 5 464 +/- 5 Hz Freq 6 802 +/- 5 Hz Freq 7 650 +/- 5 Hz Freq 8 800 +/- 7 Hz Freq 8 660 +/- 6 Hz Freq 8 767 +/- 6 Hz Freq 8 665 +/- 6 Hz Freq 8 728 +/- 6 Hz Stop and off 5 seconds, 3 - 1 second pulses and repeat Mode 4 will blink 4 Flashes every 2 seconds Note that due to the accuracy of the microprocessor generated signal, most units are within 1 Hz of the specified frequency. The total cycle time is 12 minutes.	1.0 min 1.0 min 1.0 min 1.0 min 1.0 min 1.0 min 1.0 min 1.0 min 1.0 min 1.0 min 1.0 min 1.0 min
	Note: The frequencies in this unit are far more accurate than the frequencies in Rife units that select the frequency using a dial, unless a digital readout is used.
Mode 5	Ultimate Zapper Mode, actually better than. Freq 2 kHz+/- 10 Hz Stop and off 5 seconds, 3 - 1 second pulses and repeat Mode 5 will blink the Mode/Battery LED 5 Flashes every 2 seconds Note: Use for 7 minutes on, 15-20 minutes off, repeat 3 times. Repeating 4 times will improve effectiveness. Important Note: This mode has a 90 percent duty cycle that is supposed to generate more harmonics. Did we include it because it is so good? No, we included it so that people do not have to buy a handful of zappers just to try them all.	7.0 min
Mode 6	Special mode 66.667 percent duty cycle Freq 2 kHz+/- 10 Hz Stop and off 5 seconds, 3 - 1 second pulses and repeat Mode 5 will blink the Mode/Battery LED 5 Flashes every 2 seconds Note: Use for 7 minutes on, 15-20 minutes off, repeat 3 times. Repeating 4 times will improve effectiveness. Important Note: This mode has a 66.667 percent duty cycle that is supposed to generate both even and odd harmonics. Did we include it because it is so good? No, we included it so that people do not have to buy a handful of zappers just to try them all.	7.0 min

While the unit has automatic timing and recycling for each frequency, it does not feature an automatic shutdown so that it can be used for continouos zapping. Power to the unit is supplied by a standard 9-volt battery and is controlled by a push-on / push-off switch. The output voltage is 10.8 volts and the battery is completely depleted before requiring disposal. This helps to avoid connecting the zapper to wall power which can be dangerous. Frequency selection is by momentary contact push button switch. To change modes, simply press the mode switch. The battery and mode LED's will both come on at the same time. Release the switch and the next mode will start.

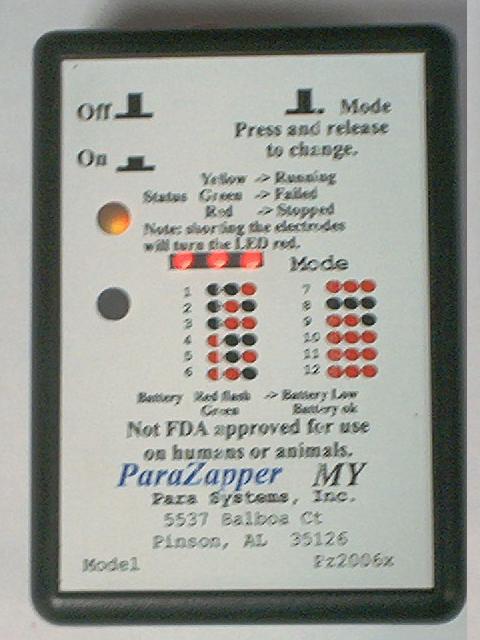

Description of Indicators ( Status, Mode/Battery ) and switches (ON/OFF) and Mode (mode change)

Power ON switch: (ON/OFF Button)
When the ON/OFF switch is pressed, the unit will come on, beeps for a second, and always starts out in Mode 1.

Status LED: (Status) located nearest the On/Off button
The status LED can be used to monitor normal operation and also to test the unit for correct operation. The Status LED will normally appear yellowish or orange but there are exceptions. In the high duty cycle modes (Ultimate and ) the Status will show almost all red. If the battery is completely dead or missing, the LED will be off or dark. If for some reason, the output fails, the LED will either be solid green or red.
To test the unit when operating, the unit should be on and operating in Mode 1,2,3, or 4 with the copper paddles connected but not touching. In this condition, the LED will appear yellow or amber because it is flickering between red and green.
Touching the copper paddles together should cause the LED to show almost completely red due to the current load being pulled by the short circuit. This is an indicaton that the zapper output is functioning properly and providing sufficient output for best results.

Mode change switch: ( MODE button )
Pressing this button at any time will change the current mode and will also restart the timer.
Each time that the mode switch is pressed, it will cycle to the next mode which can be observed by watching the Mode/Battery LED for the number of flashes produced. The unit will also generate a short beep each time that the mode is changed.

Mode LED: (Battery / Mode) which is the Lower LED
The mode LED flashes green once per every 2 seconds unless the battery is low in which case the LED will flash red.

Mode indicators: There are 3 indicators to show which mode the unit is operating in.

zapper

Hulda Clark Zapper is
not FDA approved for human or animal use.

Due to FDA restrictions,
Hulda Clark Zappers are not sold or intended for
human use or on animals.

The zappers below are intended to be used to lower levels
of bacteria, parasites, and other organisms in standing
water such as cooling towers, ponds, fountains, water containers, or similar water tanks, but may be used for other purposes if the user so wishes.

Zappers may also be used for checking oscilloscopes
or items such as small loud speakers,
but not for calibration purposes.

By purchasing any zapper or accessory from this site
you are agreeing that these products are sold
"not intended for use on humans or animals".

Not sold for use with drinking water, potable water,
in swimming pools, or for food preparation.

ParaZapper™MY

Not available yet, expected by Sept. 30, 2010

Not sold for use on humans or animals due to FDA requirements.

For the user who wants more frequencies and power.
With Stronger output than standard zappers, multiple repeating frequency cycles ion each range, Low Battery Indicator, Dual Frequency ranges, and a multicolor Status Indicator.

This is a multi-frequency zapper that is expected to provide better overall results.
Instructions for use on humans are not included but are available.

This model not available yet


Warranty Satisfaction Privacy	About us	Shipping	Technical information	Other zapper products

Usage

Using these devices for eliminating parasites from water is easy but is not 100 percent effective.
Before and after microscopic examination of pond water samples show significant reduction of microbial content after usage.

Normal application is to place the electrodes into the water, further apart is better.
The unit is then turned on 7 minutes and off for 20 minutes and repeated 3 or 4 times.

Do not use for drinking water, potable water, or in swimming pools.
